ENGINEERED TO PERFORM…

Our machining and fabrication unit offers engineering solutions for all your projects from single components to complete machine design and assembly.  We offer a cost effective service of machine and fabricated components to buyers of small to medium volumes of precision parts.  Our manufacturing engineers work closely with our design team using the latest; 3D CAD, Solid Works  and 3D printers.

The machining and fabrication unit also offers:

  • Component manufacture  – small and large batchwork including prototypes
  • CAD/CAM controlled CNC machining/turning/milling
  • Conventional machining and fabrication
  • Chemical Blacking

CAPACITY LIST

CNC Turning

  • Hurco TM10i Max Ø 295mm Max Length 695mm
  • Yamnazaki Slant Turn Max Ø 350mm Max Length 1500mm
  • Colchester Tornado Max Ø 200mm Length 400mm

CNC Milling

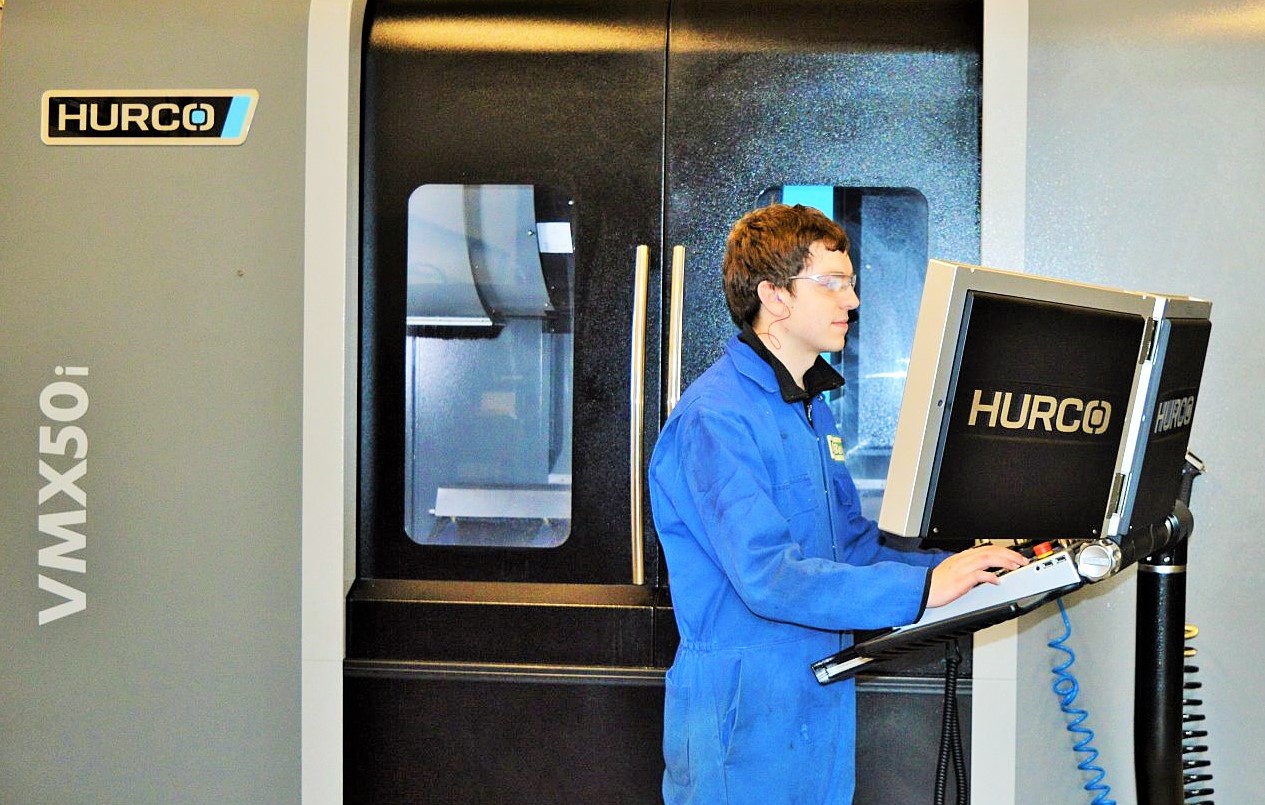

  • Hurco VMX50i Max ‘X’ 1270mm Max ‘Y’ 660mm Max ‘Z’ 610mm
  • Leadwell MCV 2000 Max ‘X’ 2000mm Max ‘Y’ 900mm Max ‘Z’ 400mm
  • Leadwell MCV 610 Max ‘X’ 600mm Max ‘Y’ 300mm Max ‘Z’ 400mm

Conventional Machining

  • Horizontal Union Boring 2m (cubed)
  • Colchester Mastiff Lathe (x2) Max Ø 650mm (850mm in gap) Max Length 1500mm
  • FIL Vertical Milling (x2) Max ‘X’ 1400mm Max ‘Y’ 500mm Max ‘Z’ 400mm
  • Jones + Shipman Cylinder Grinder Max Ø 200mm Max Length 1000mm
  • Jones + Shipman Surface Grinder Max ‘X’ 450mm Max ‘Y’ 120mm
  • Archdale Radial Drill 1m Swing
  • Archdale Pillar Drills (x4)

For all sub-contracting enquires for contact:

Andy Jones, Works Director: andy@nibek.com or Debbie Hoole: debbie@nibek.com

Tel: + 44 (0) 1782 746570/ 745043  Mobile: 07876 574741
